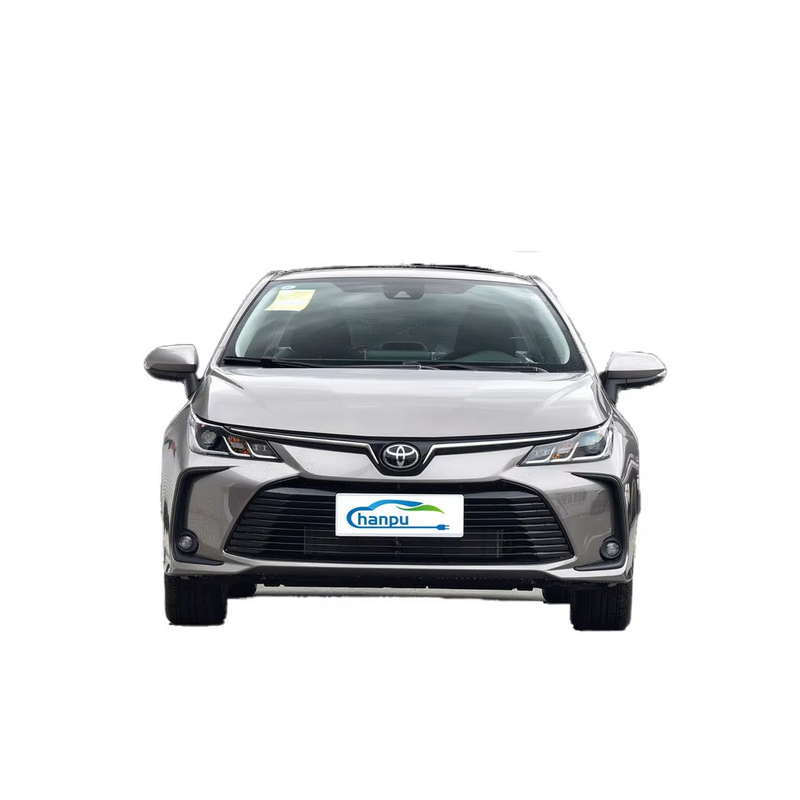

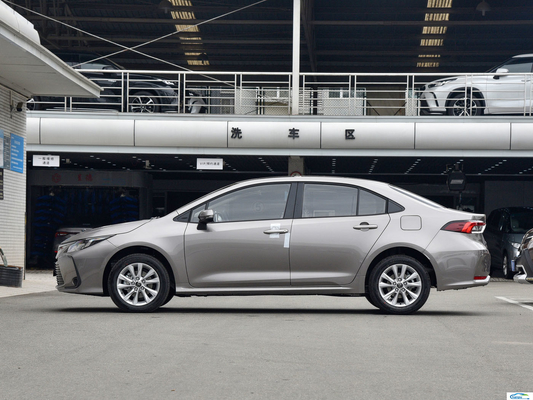

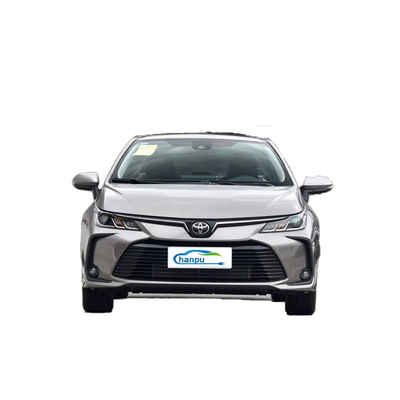

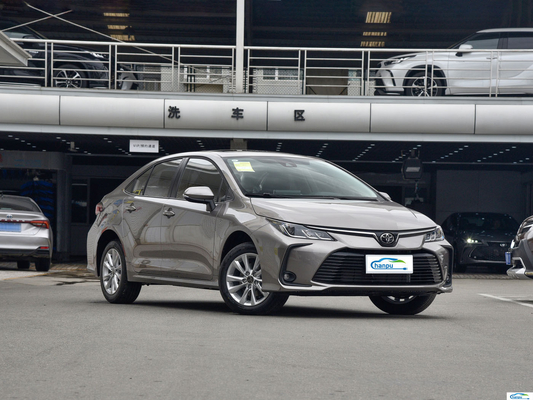

Electric Steering System 2024 Corolla 1.2T Pioneer Edition Gasoline Sedan for FAW Toyota
Product Details:
| Place of Origin: | China |
| Brand Name: | toyota |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00/units 1-49 units |
|
Detail Information |
|||
| Condition: | New | Steering: | Left |
|---|---|---|---|
| Emission Standard: | Euro VI | Year: | 2023 |
| Month: | 5 | Made In: | China |
| Type: | Sedan | Fuel: | Gas/Petrol |
| Engine Type: | Turbo | Displacement: | ≤1.5L |
| Cylinders: | 4 | Maximum Power(Ps): | 100-150Ps |
| Forward Shift Number: | 10 | Maximum Torque(Nm): | 100-200Nm |
| Dimension: | 4635*1780*1455(mm) | Wheelbase: | 2500-3000mm |
| Number Of Seats: | 5 | Minimum Grand Clearance: | 10°-15° |
| Fuel Tank Capacity: | ≤50L | Curb Weight: | 1000kg-2000kg |
| Cabin Structure: | Integral Body | Drive: | FWD |
| Front Suspension: | Macpherson | Rear Suspension: | Multi-link |
| Steering System: | Electric | Parking Brake: | Electric |
| Brake System: | Front Disc+Rear Dsic | Tire Size: | R15 |
| ABS(Antilock Braking System): | Yes | ESC(Electronic Stability Control System): | Yes |
| Radar: | Front 4+Rear 4 | Rear Camera: | Camera |
| Sunroof: | Panoramic Sunroof | Roof Rack: | Aluminium Alloy |
| Steering Wheel: | Multi-function | Seats Material: | Leather |
| Driver's Seat Adjustment: | Manual | Copilot Seat Adjustment: | Manual |
| Touch Screen: | Yes | Car Entertainment System: | Yes |
| Air Conditioner: | Automatic | Headlight: | LED |
| Front Window: | Electric+One Key Lifting | Rear Window: | Electric+One Key Lifting |
| Exterior Rearview Mirror: | Electric Adjustment+Heating+Electric Folding | ||
Product Description
Product Description
Model | Corolla 2024 1.2T Pioneer Edition | Corolla 2024 1.2T Elite Edition | Corolla 2023 1.5L Pioneer Edition | Corolla 2023 1.5L Elite Edition |
Energy Type | Gasoline | Gasoline | Gasoline | Gasoline |
Environmental Standard | National VI | National VI | National VI | National VI |
Listing Time | 2024 - 07 | 2024 - 07 | 2023 - 05 | 2023 - 05 |
Engine | 1.2T 116HP L4 | 1.2T 116HP L4 | 1.5L 121HP L3 | 1.5L 121HP L3 |
Maximum Power (kW) | 85 | 85 | 89 | 89 |
Maximum Torque (N·m) | 185 | 185 | 148 | 148 |
Transmission | CVT (simulated 10 - speed) | CVT (simulated 10 - speed) | CVT (simulated 10 - speed) | CVT (simulated 10 - speed) |
Body Structure | 4 - door 5 - seat sedan | 4 - door 5 - seat sedan | 4 - door 5 - seat sedan | 4 - door 5 - seat sedan |
Length × Width × Height (mm) | 4635 × 1780 × 1455 | 4635 × 1780 × 1455 | 4635 × 1780 × 1435 | 4635 × 1780 × 1435 |
Wheelbase (mm) | 2700 | 2700 | 2700 | 2700 |
Front Wheel Track / Rear Wheel Track (mm) | 1527 / 1526 | 1527 / 1526 | 1531 / 1519 | 1531 / 1519 |
Minimum Ground Clearance (mm) | - | - | - | - |
Minimum Turning Radius (m) | 5.2 | 5.2 | 5.2 | 5.2 |
Vehicle Weight (kg) | 1335 | 1340 | 1310 | 1325 |
Door Opening Method | Normal opening | Normal opening | Normal opening | Normal opening |
Number of Doors | 4 | 4 | 4 | 4 |
Number of Seats | 5 | 5 | 5 | 5 |
Fuel Tank Volume (L) | 50 | 50 | 47 | 47 |
Trunk Volume (L) | 470 | 470 | 470 | 470 |
Engine | - | - | - | - |
Engine Model | 9NR / 8NR | 9NR / 8NR | M15B | M15B |
Displacement (ml) | 1197 | 1197 | 1490 | 1490 |
Intake Form | Turbocharged | Turbocharged | Naturally aspirated | Naturally aspirated |
Engine Layout | Transverse | Transverse | Transverse | Transverse |
Cylinder Arrangement | In - line | In - line | In - line | In - line |
Number of Cylinders | 4 | 4 | 3 | 3 |
Number of Valves per Cylinder | 4 | 4 | 4 | 4 |
Compression Ratio | 10 | 10 | 13 | 13 |
Valve Mechanism | DOHC | DOHC | DOHC | DOHC |
Cylinder Diameter (mm) | 71.5 | 71.5 | 80.5 | 80.5 |
Stroke (mm) | 74.5 | 74.5 | 97.6 | 97.6 |
Fuel Form | Gasoline | Gasoline | Gasoline | Gasoline |
Fuel Label | 92# | 92# | 92# | 92# |
Fuel Supply Method | Direct injection | Direct injection | Direct injection | Direct injection |
Cylinder Head Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Cylinder Block Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
Emission Standard | National VI | National VI | National VI | National VI |
Motor/Battery | - | - | - | - |
Motor Model | - | - | - | - |
Motor Type | - | - | - | - |
Maximum Horsepower of Motor (ps) | - | - | - | - |
Total Power of Motor (kW) | - | - | - | - |
Total Torque of Motor (N·m) | - | - | - | - |
Battery Type | - | - | - | - |
Battery Warranty Time | - | - | - | - |
Gearbox | - | - | - | - |
Abbreviation | CVT | CVT | CVT | CVT |
Number of Gears | Simulated 10 - speed | Simulated 10 - speed | Simulated 10 - speed | Simulated 10 - speed |
Gearbox Type | Continuously Variable Transmission | Continuously Variable Transmission | Continuously Variable Transmission | Continuously Variable Transmission |
Chassis Steering | - | - | - | - |
Driving Mode | Front - wheel drive | Front - wheel drive | Front - wheel drive | Front - wheel drive |
Four - wheel Drive Form | - | - | - | - |
Central Differential Structure | - | - | - | - |
Front Suspension Type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
Rear Suspension Type | E - type multi - link independent suspension | E - type multi - link independent suspension | Torsion beam non - independent suspension | Torsion beam non - independent suspension |
Steering Assist Type | Electric power | Electric power | Electric power | Electric power |
Body Structure | Bearing type | Bearing type | Bearing type | Bearing type |
Wheel Brake | - | - | - | - |
Front Brake Type | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
Rear Brake Type | Disc | Disc | Disc | Disc |
Parking Brake Type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
Front Tire Specification | 205 / 55 R16 | 205 / 55 R16 | 195 / 65 R15 | 195 / 65 R15 |
Rear Tire Specification | 205 / 55 R16 | 205 / 55 R16 | 195 / 65 R15 | 195 / 65 R15 |
Spare Tire Specification | Non - full - size | Non - full - size | Non - full - size | Non - full - size |
Safety | - | - | - | - |
Driver Airbag | Standard | Standard | Standard | Standard |
Passenger Airbag | Standard | Standard | Standard | Standard |
Front Side Airbag | Standard | Standard | Standard | Standard |
Rear Side Airbag | - | - | - | - |
Front Head Airbag | Standard | Standard | Standard | Standard |
Rear Head Airbag | - | - | - | - |
Knee Airbag | Standard | Standard | Standard | Standard |
Tire Pressure Monitoring | Standard | Standard | Standard | Standard |
Child Safety Seat Interface | Standard | Standard | Standard | Standard |
ABS Anti - lock Braking System | Standard | Standard | Standard | Standard |
EBD Electronic Brakeforce Distribution | Standard | Standard | Standard | Standard |
Brake Assist | Standard | Standard | Standard | Standard |
Traction Control | Standard | Standard | Standard | Standard |
Vehicle Stability Control | Standard | Standard | Standard | Standard |
